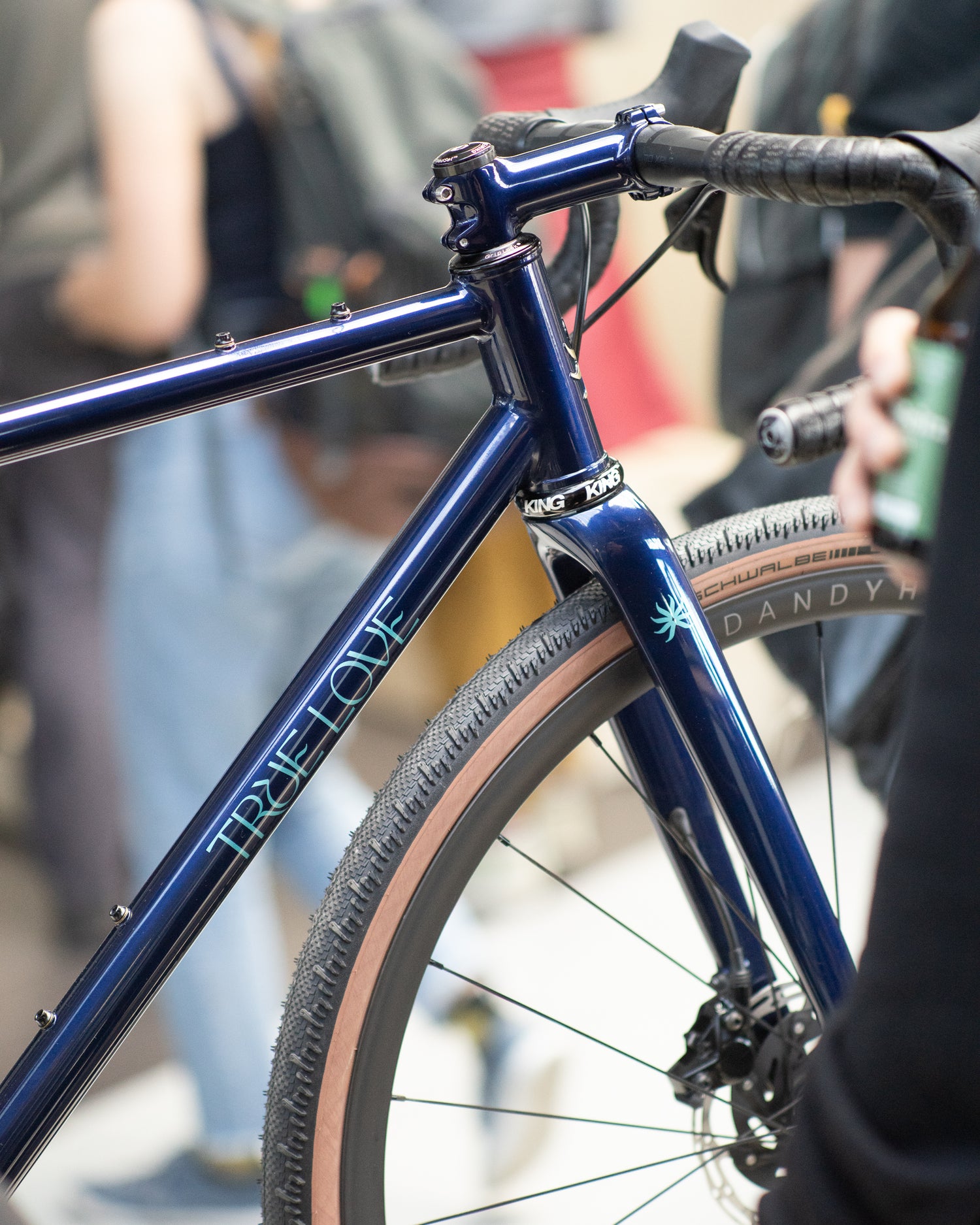

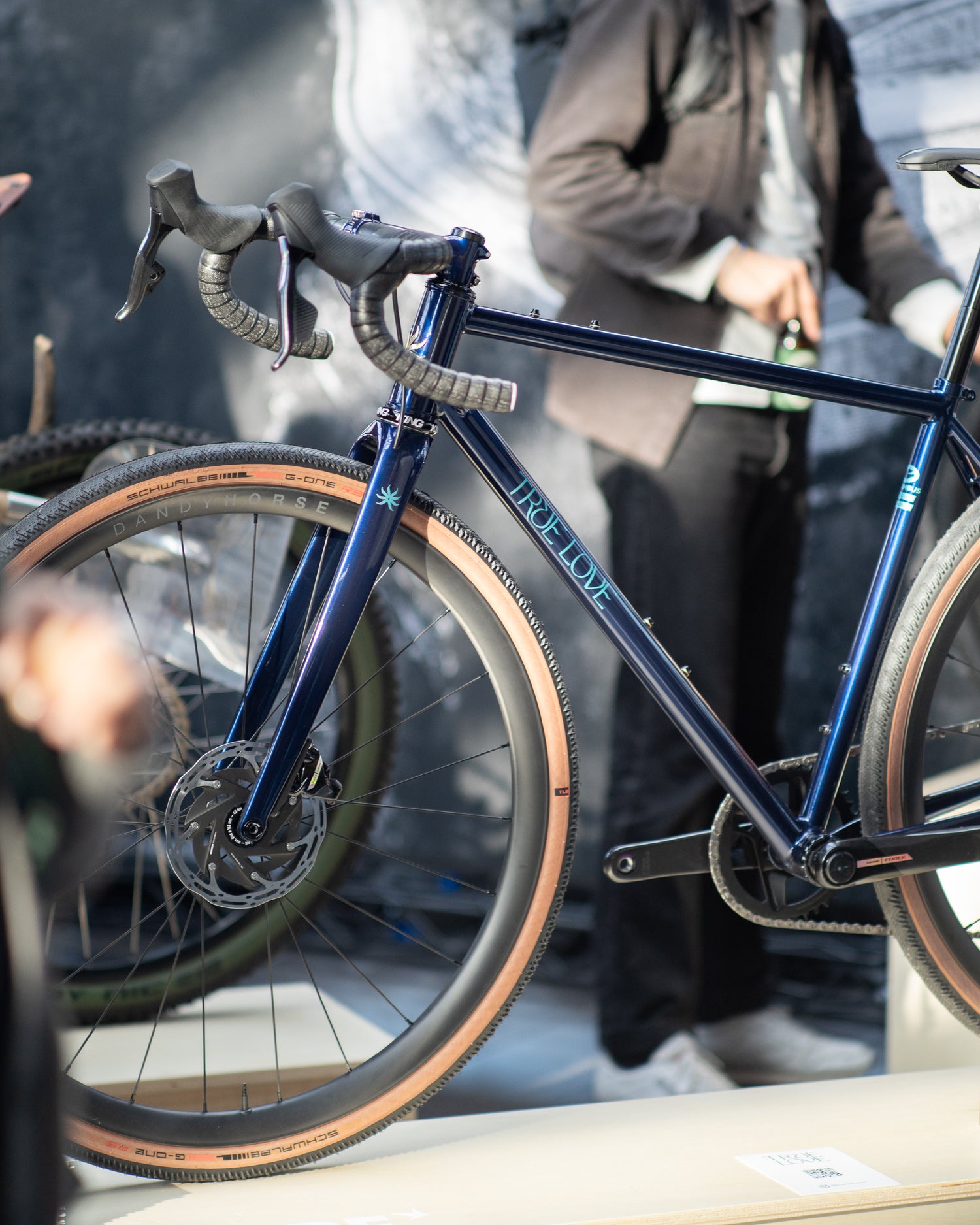

Gravel Racer. Steel Bullet.
It’s longer and slacker than the all-road Roadkill and fits up to 50mm tires. It also sits a bit lower providing more "in the bike" feel (and probably some aero gains while going 100kph ;) Lightweight, performance-oriented tubeset is composed from Columbus Life and Spirit families.
Basic geometry facts:
- Trail: 73mm
- Head Tube angle: 71 degrees
- Seat Tube angle: 73 degrees
- Bottom Bracket drop: 80mm
- Chainstay length: 420mm
- 12x142mm thru axle rear, 12x100mm thru axle front

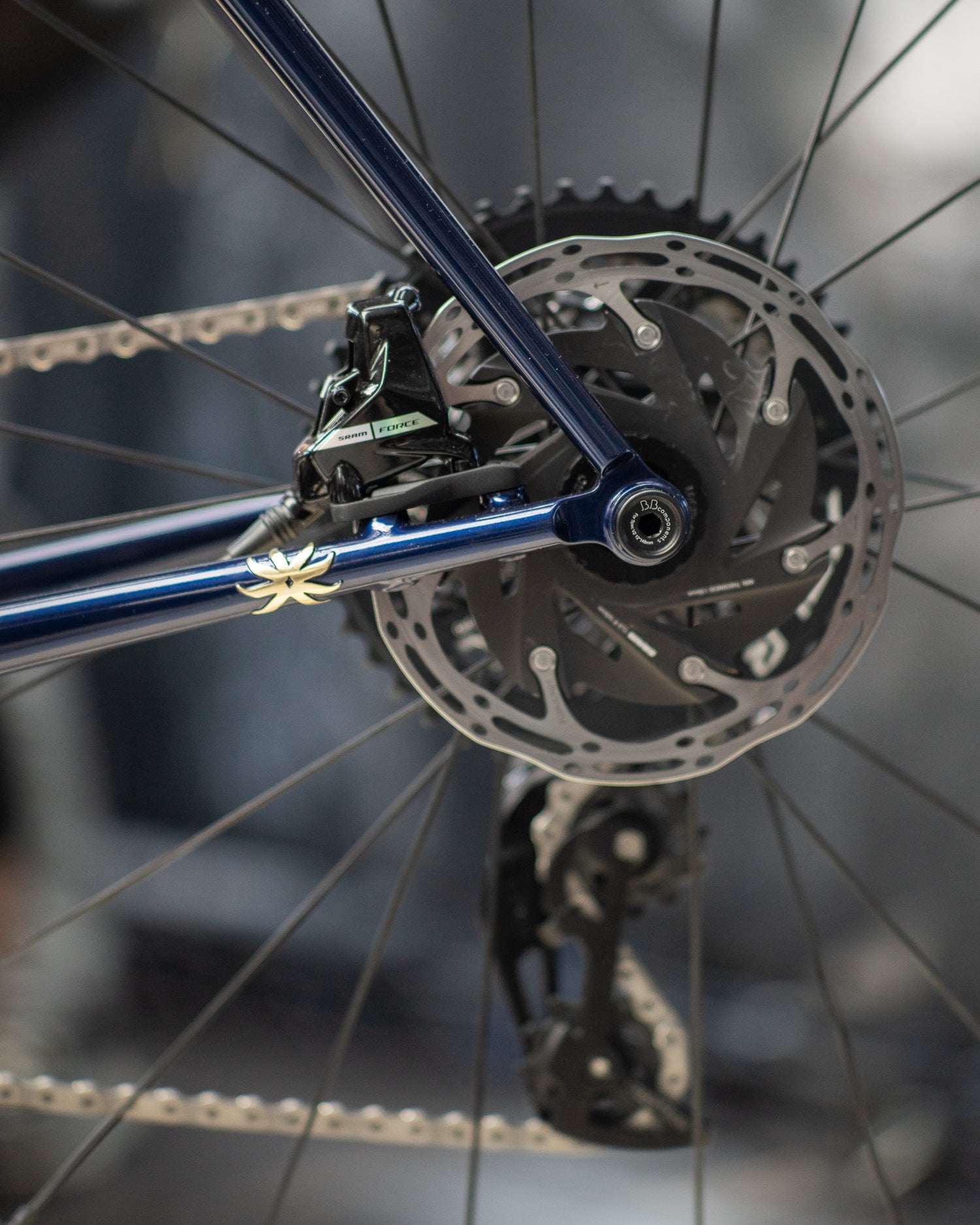

- UDH-compatible dropouts designed and made in-house,
- T-type direct mount derailleur ready.
Pricing
The frameset with Columbus Futura All Roads rigid carbon fork starts at 3900EUR. What’s included? Custom geometry, Internal cable routing, UDH-ready dropouts and derailleur hanger, thru axels, custom color (one color for the frame and one for the logos), T47 bottom bracket, all the bottle cage bosses you need. We use a mix of the top Columbus CroMo tubing families: Spirit, Life, Zona. The frame is filletbrazed with the smooth fillet finish.
Special details are extra charged: internal routing through the head tube, carbon seat mast, additional bosses or a custom steel fork. Builds based on Sram or Campagnolo upon request.
The ordering process:
We ask for the 50% deposit first to secure the place in the line, give you approximate dates when the frame is ready and to order the frame components.To start the design process I need your bike fitting data or the details of the bike, that fits you well.
ESTIMATED PRODUCTION TIME: 4 MONTHS
